Hot filling semi-auto bottle blow moulding machine PM2000HB

Place of Origin : Dalian China

Brand Name : Maccsy

Certification : ISO CE

Model Number : PM2000HB

Sort : semi-auto bottle blow moulding machine

MOQ : 1

Price : Negotiable

Packaging Details : Safety Wooden Case

Delivery Time : 1-2 Weeks

Payment Terms : T/T L/C

Supply Ability : 20 sets / month

Contact Now

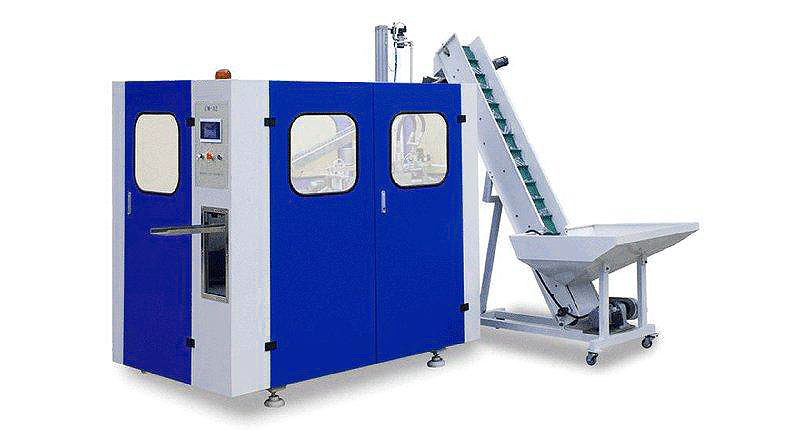

Photo of Hot filling semi-auto semi-auto bottle blow moulding machine PM2000HB

Hot filling semi-auto bottle blow moulding machine PM2000HB







Technical parameters

General Information
 		 PM2000HB

Clamping   Force
 		 20T

Clamping   Stroke
 		 230mm

Max. Stretching   Stroke
 		 380mm

Number of Cavities
 		 2 Cavity
Theoretical Output
 		 0.1-2.5L:500BPH;3-6L:280BPH


Max. Mould Thickness
 		 300mm

Space Between Tie Bars
 		 280*500mm

Electrical System

Voltage   Standard
 		 AC 380V/50HZ

Number of Heating Zone
 		 2 Sections

Total Power(Full Loaded)
 		 6kw

Container

Max. Container Volume
 		 0.1-2.5L(2cav);3-6L(1 cav)

Neck Diameter Range
 		 15-60mm

Max. Container Diameter
 		 35-220mm

Max. Container Height
 		 450mm

Auxiliary System

Low Air compressor
 		 8-10Bar

High Air compressor
 		 30Bar

Air Dryer
 		 2.0/30

Dimension & Weight (L×W×H)

Blow molding machine
 		 1480*600*2130mm

Preform   Autoloader
 		 1370*610*1340mm

Net Weight
 		 0.82Ton
